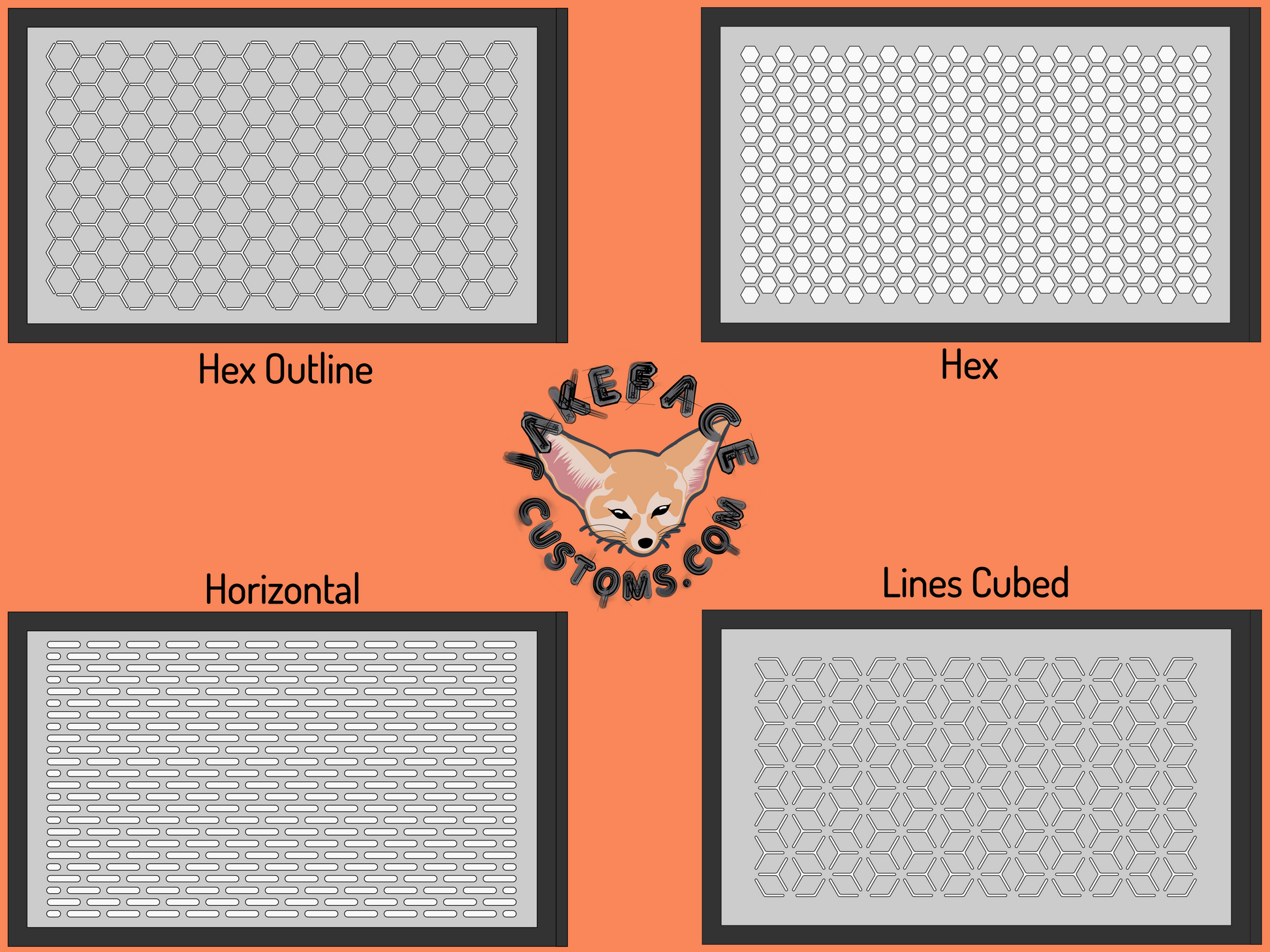

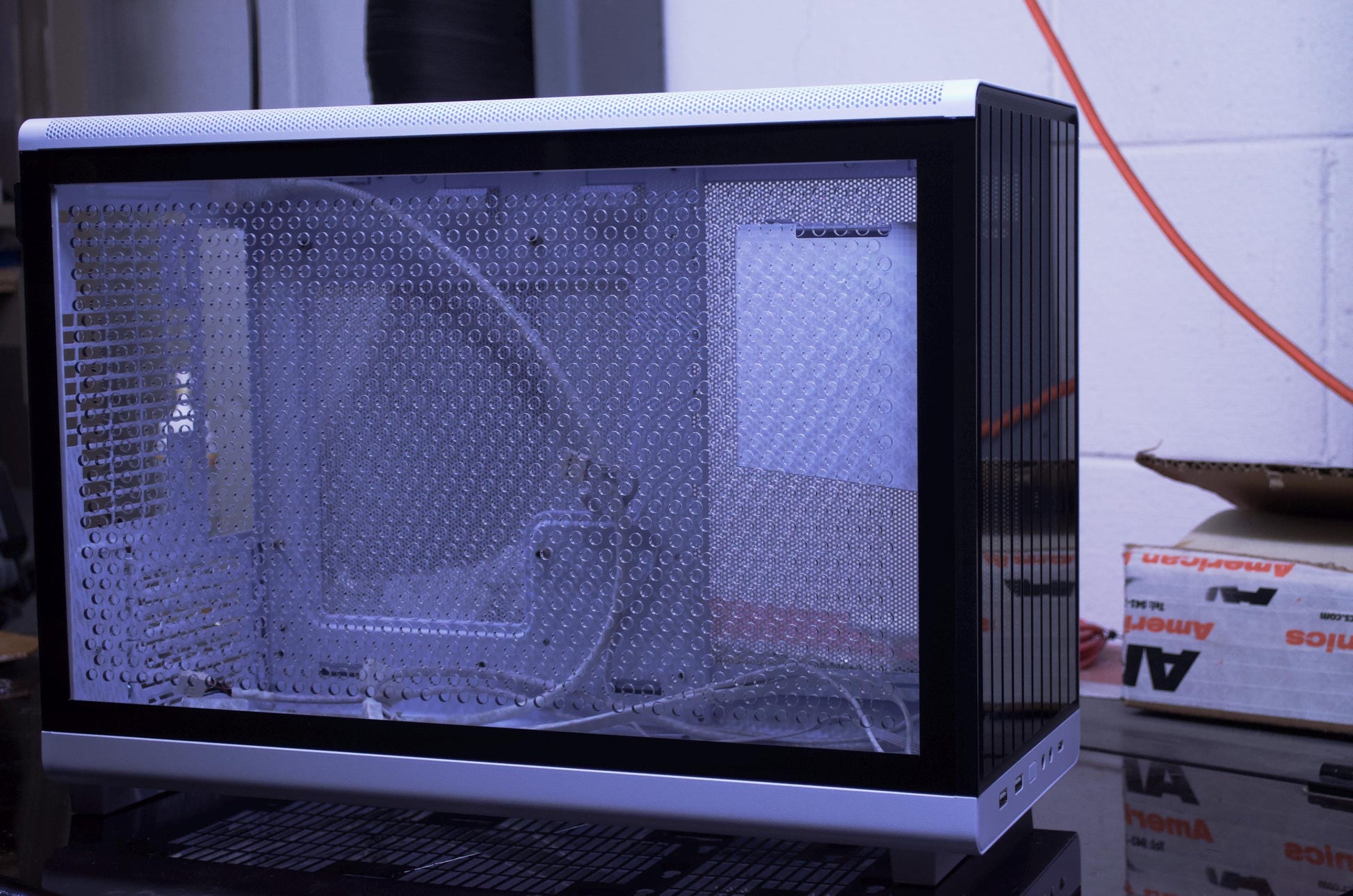

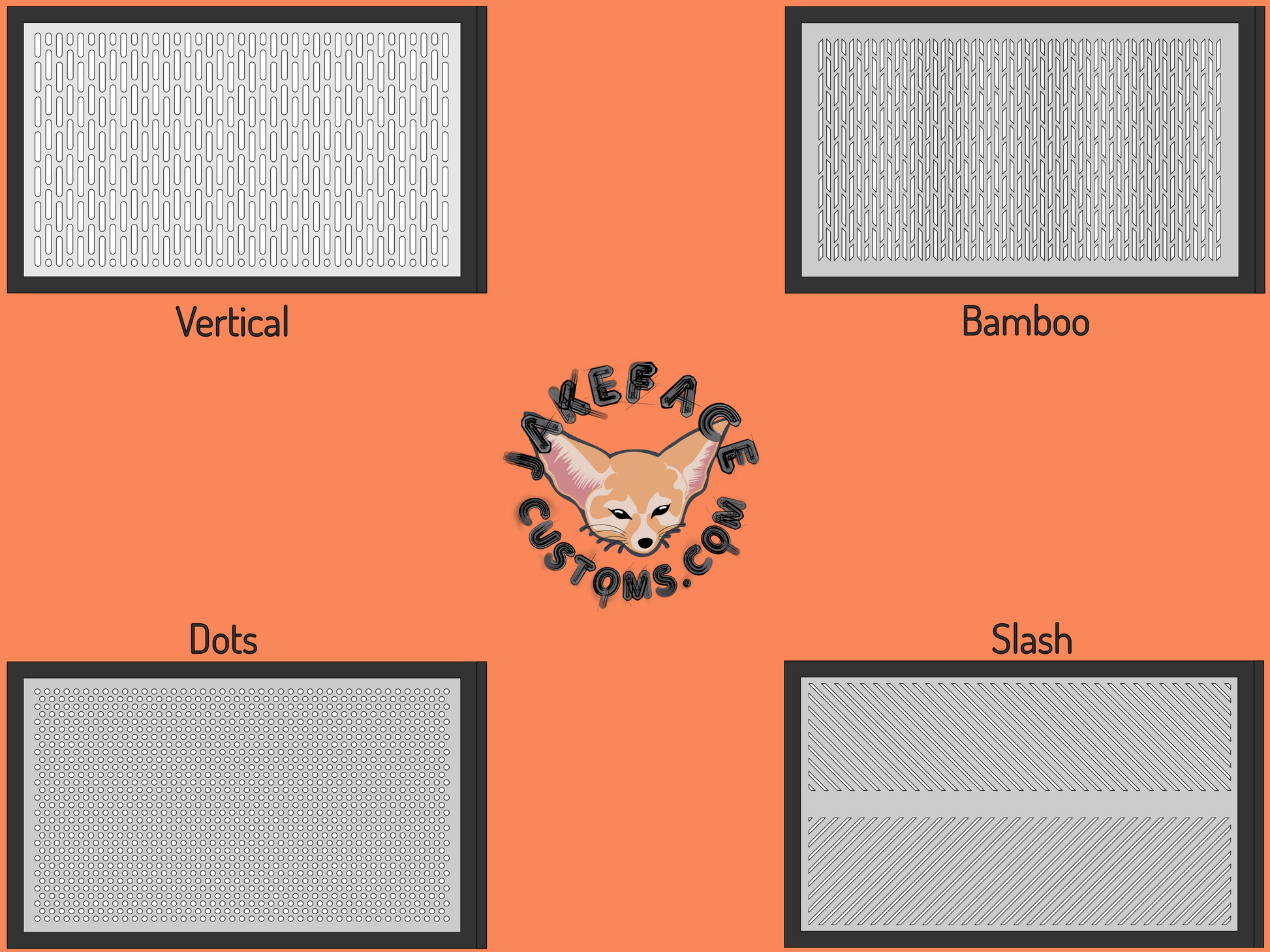

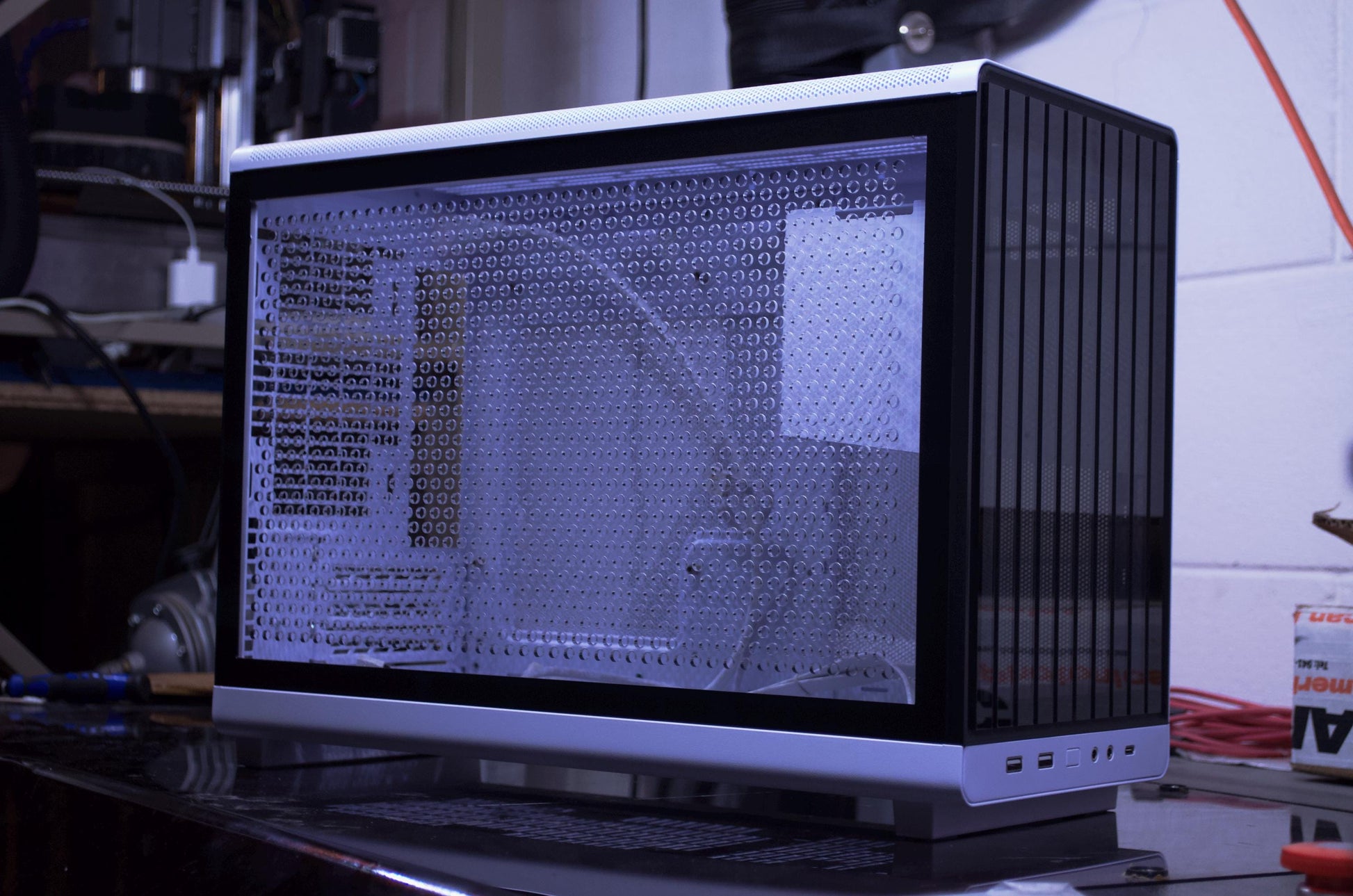

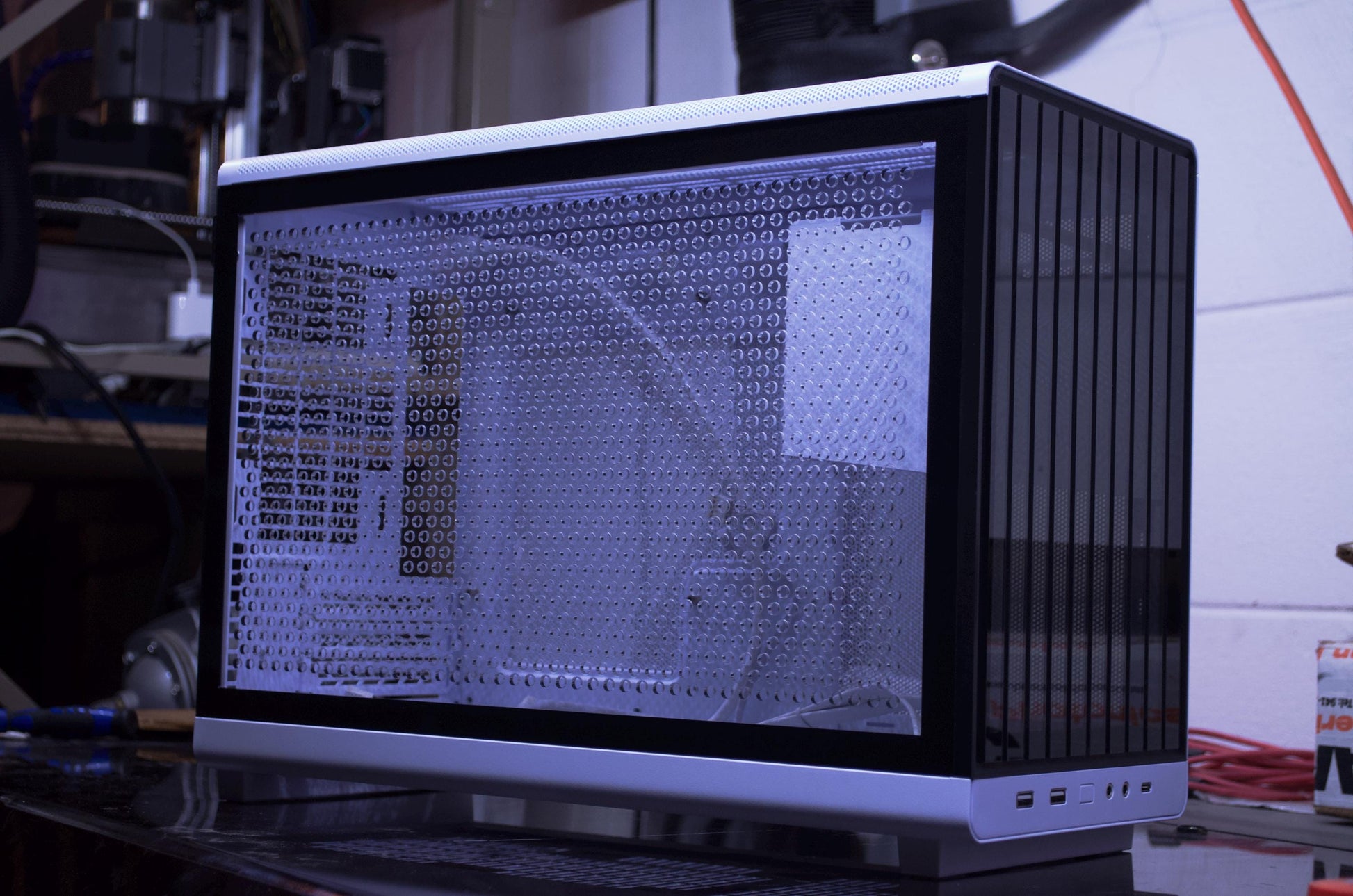

LIAN LI A3-mATX Custom Vented Side Panel

H510 Side Panel

If your new panel isn't fitting easily or you have a newer
model, check the front left corner of the case near the
bottom. There may be a metal tab blocking installation.

Simply bend down that tab in order to have an even fit.

H510 Front Panel

Remove both side panels. On the upper part of the case,
there is a little screw on either side that must be removed

for the original panel to pop off.

If the replacement panel is not fitting easily, especially if
you have a newer model: check the front of the case near
the left side for a small plastic wedge piece. This wedge
serves no purpose and must be removed for the front

panel to fit as intended.

H1 Front Panel

Before installation, remove the six rubber pads on the
front of the case (beneath the factory panel.)

Optional Fan Filters

If you purchased fan filters, these can be installed on the
front or back of your fans using the existing screws
already holding your fan in place.

A4H2O, Meshilicious, Q58, Ncase M1 and any other panel
with pins/pegs:

CAREFULLY and GENTLY install and remove!

Install: line up the pins and they should easily pop into
place (Don't smash!)

Remove: Remove carefully, one pin at a time while
keeping the panel close to the case. Do NOT yank or rip
the panel off from an angle or one side!

- Installs like the stock panel!

- No modding required!
