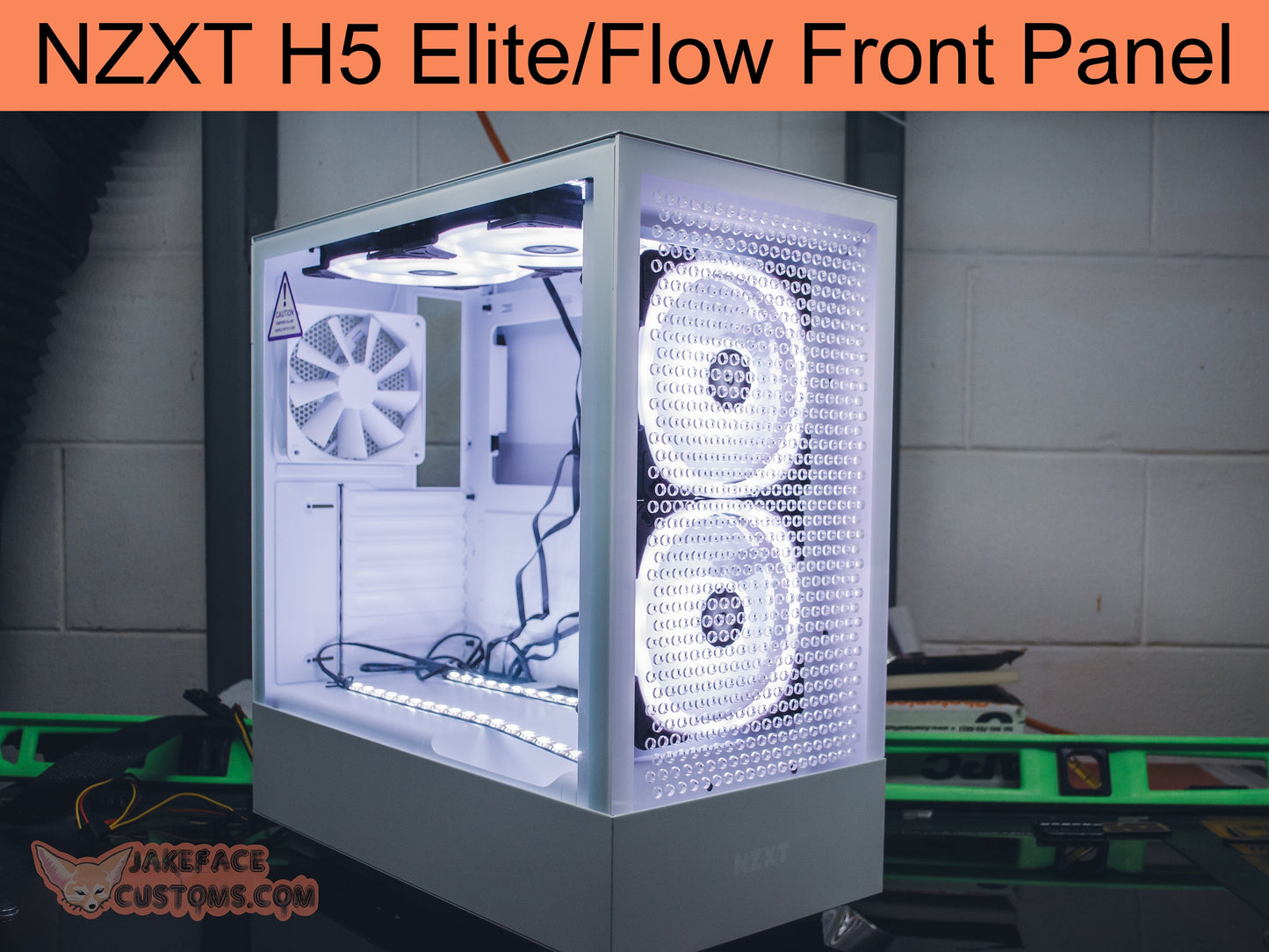

NZXT H5 Elite and Flow Custom Vented Front Panel (2022)
NZXT H5 Elite and Flow Custom Vented Front Panel (2022)
Couldn't load pickup availability

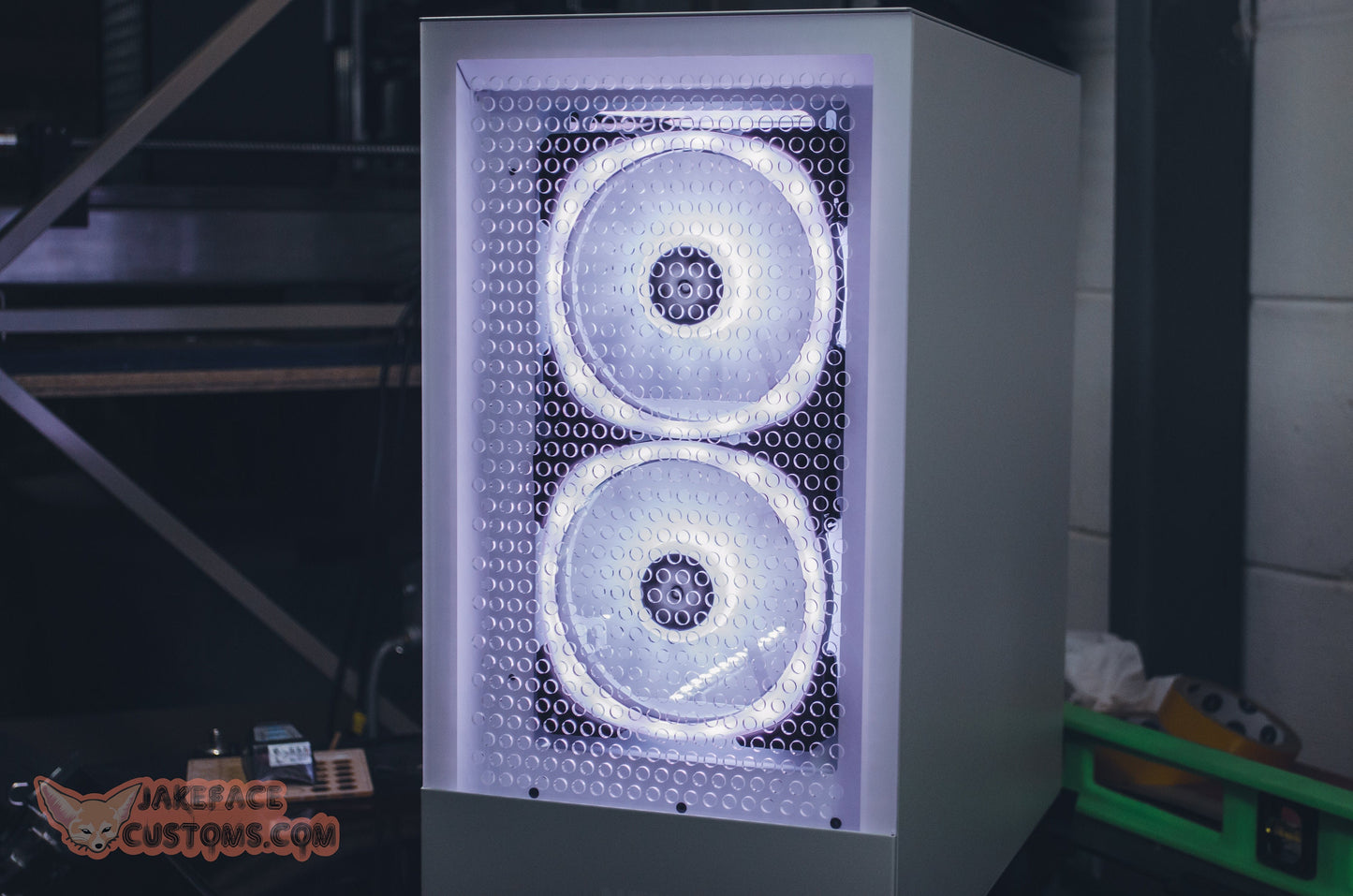

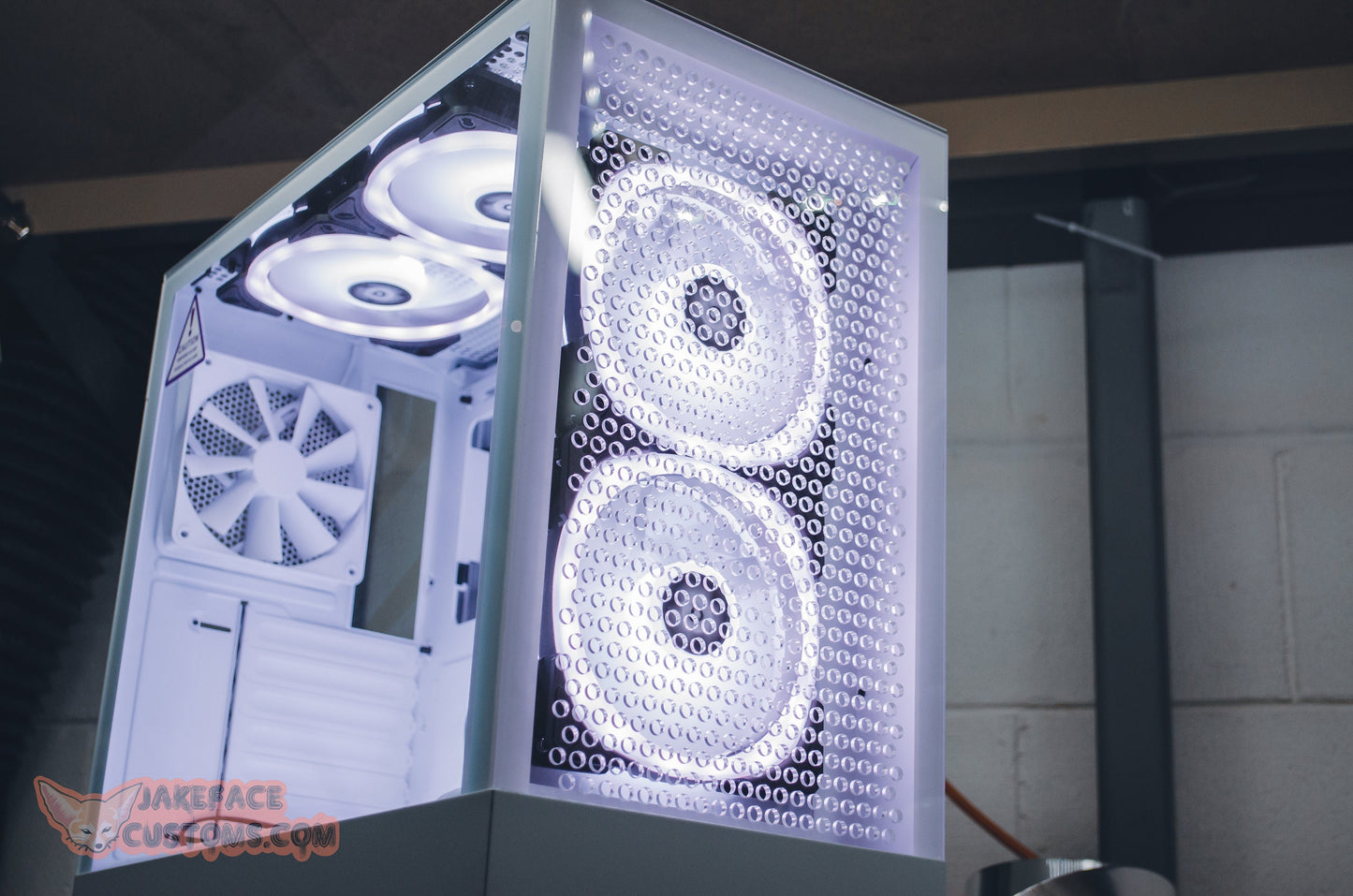

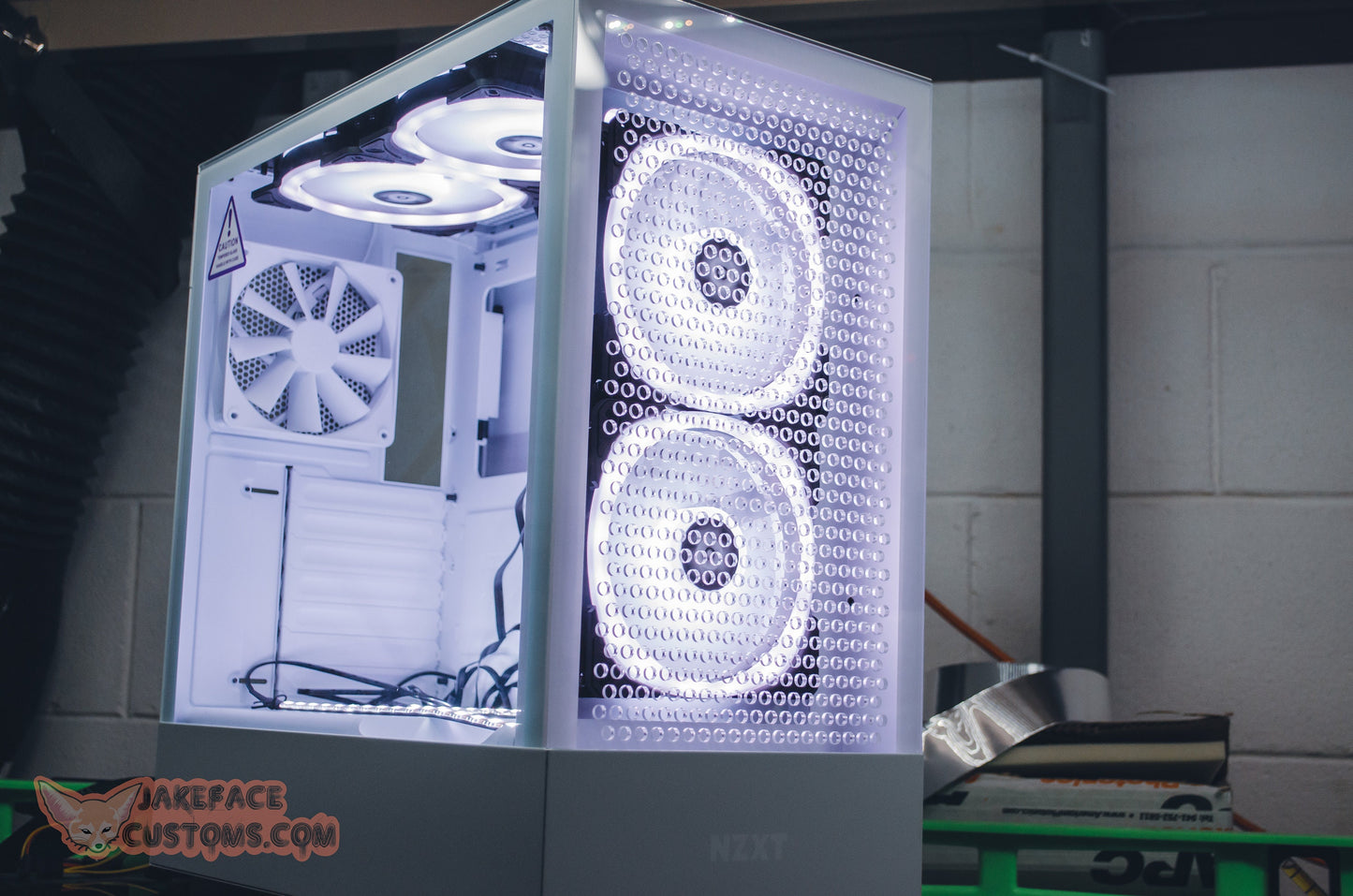

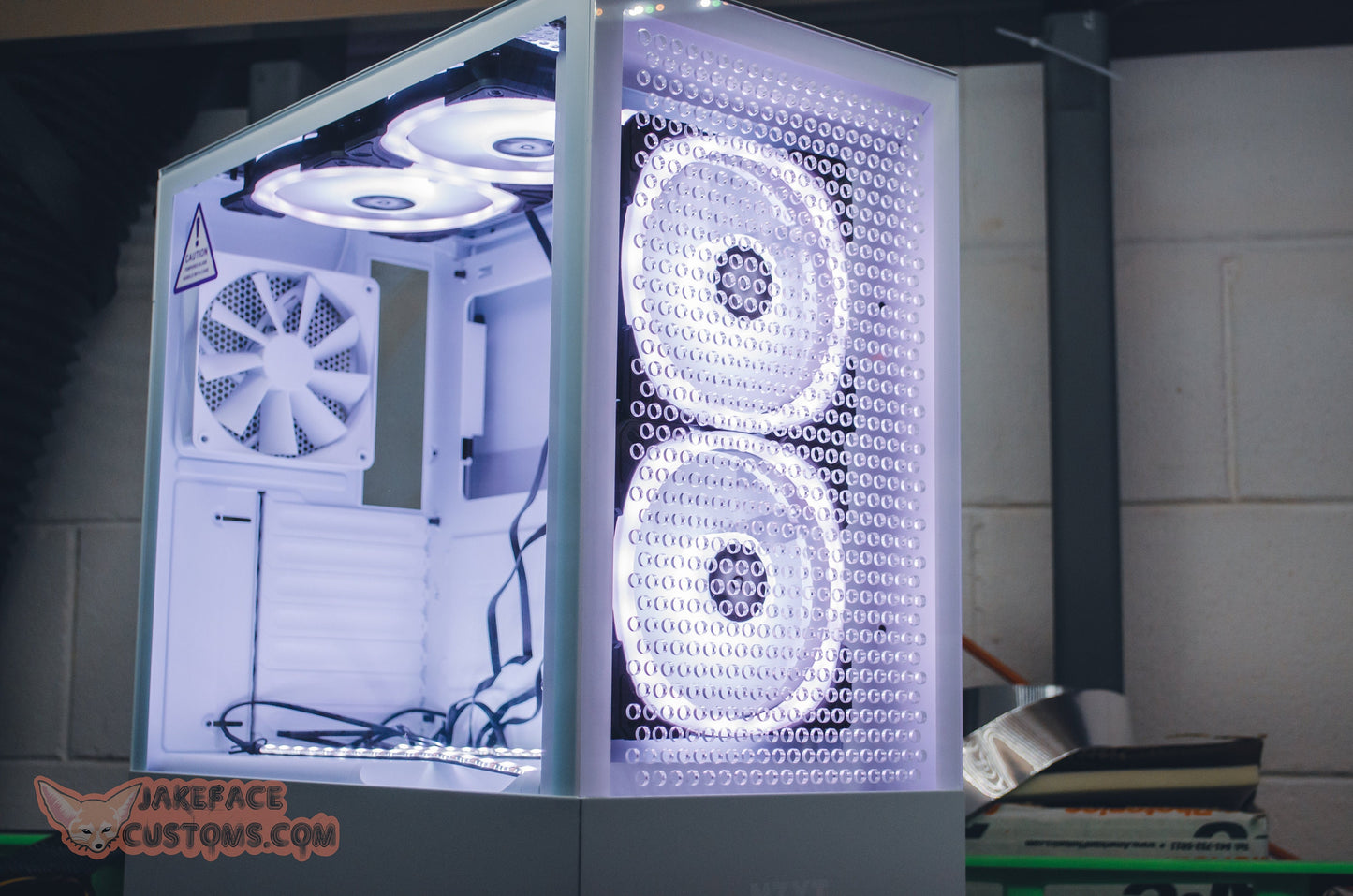

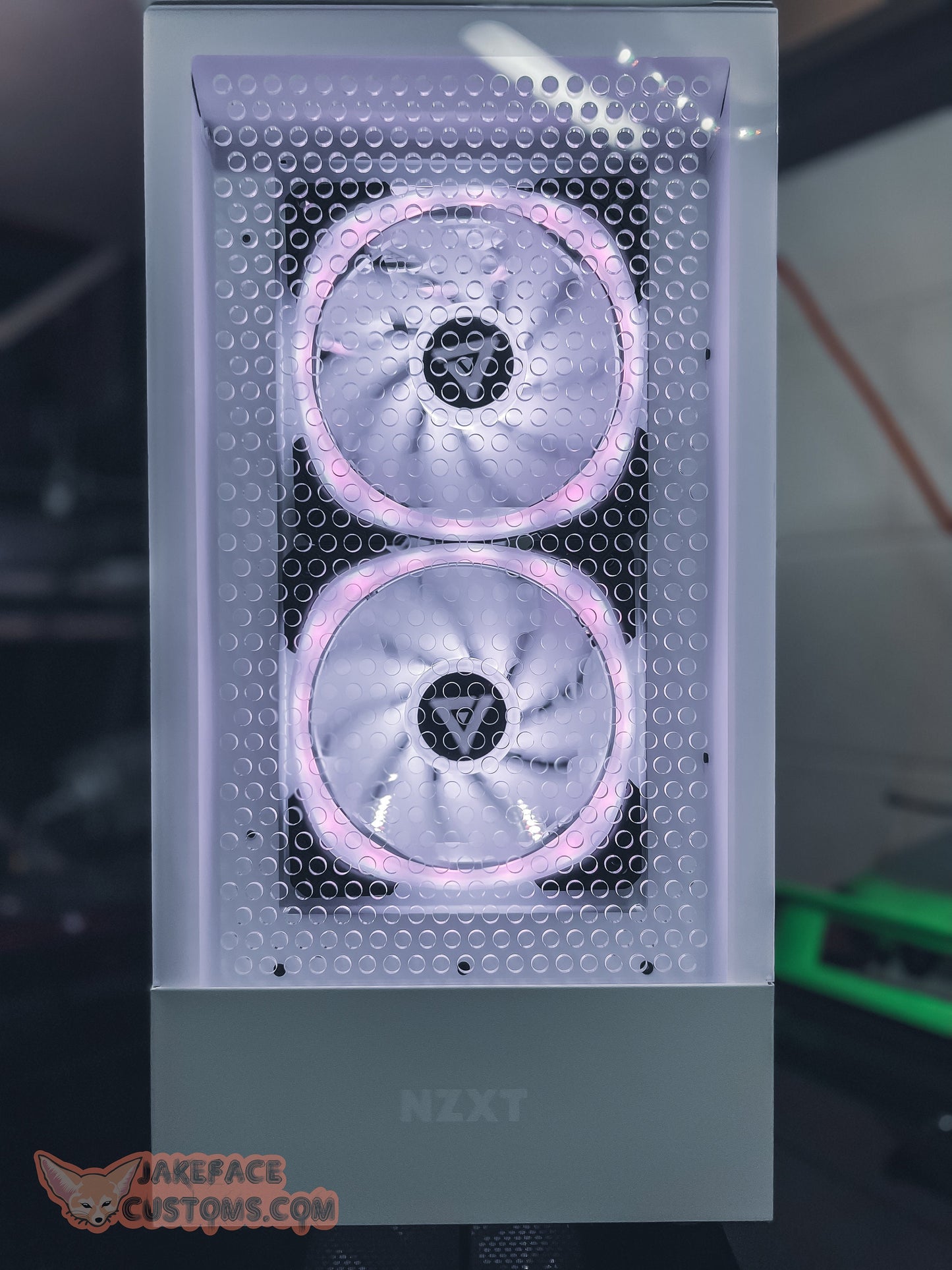

This is the ORIGINAL custom NZXT H5 Elite & Flow FRONT panel! This panel only works for the H5 released in 2022! If youre not sure please message me and I'll confirm which case you have! I am the first creator of these vented acrylic panels, which feature opaque hand PAINTED BORDERS that hide the recessed strong magnets and the case frame for a sleek look and easy installation. The vents in my ORIGINAL designs improve airflow, lowering temperatures ~5-10 °C (varies by system). These are also designed to work with my custom H5 SIDE panels (coming soon!). The acrylic used is rigid, single-sourced, and comes protected with a paper-backing to ensure the best quality. All panels are made to order, by hand. Custom designs are available; please send me a message with your request!
FEATURES:
PAINTED BORDER, hides the case frame and most of the magnets.
The default BORDER COLOR is BLACK! If you want a WHITE BORDER, enter color in text field under personalization.
White border works with Clear, Frosted Clear only.
LEAVE A NOTE IN THE TEXT BOX IN THE CART

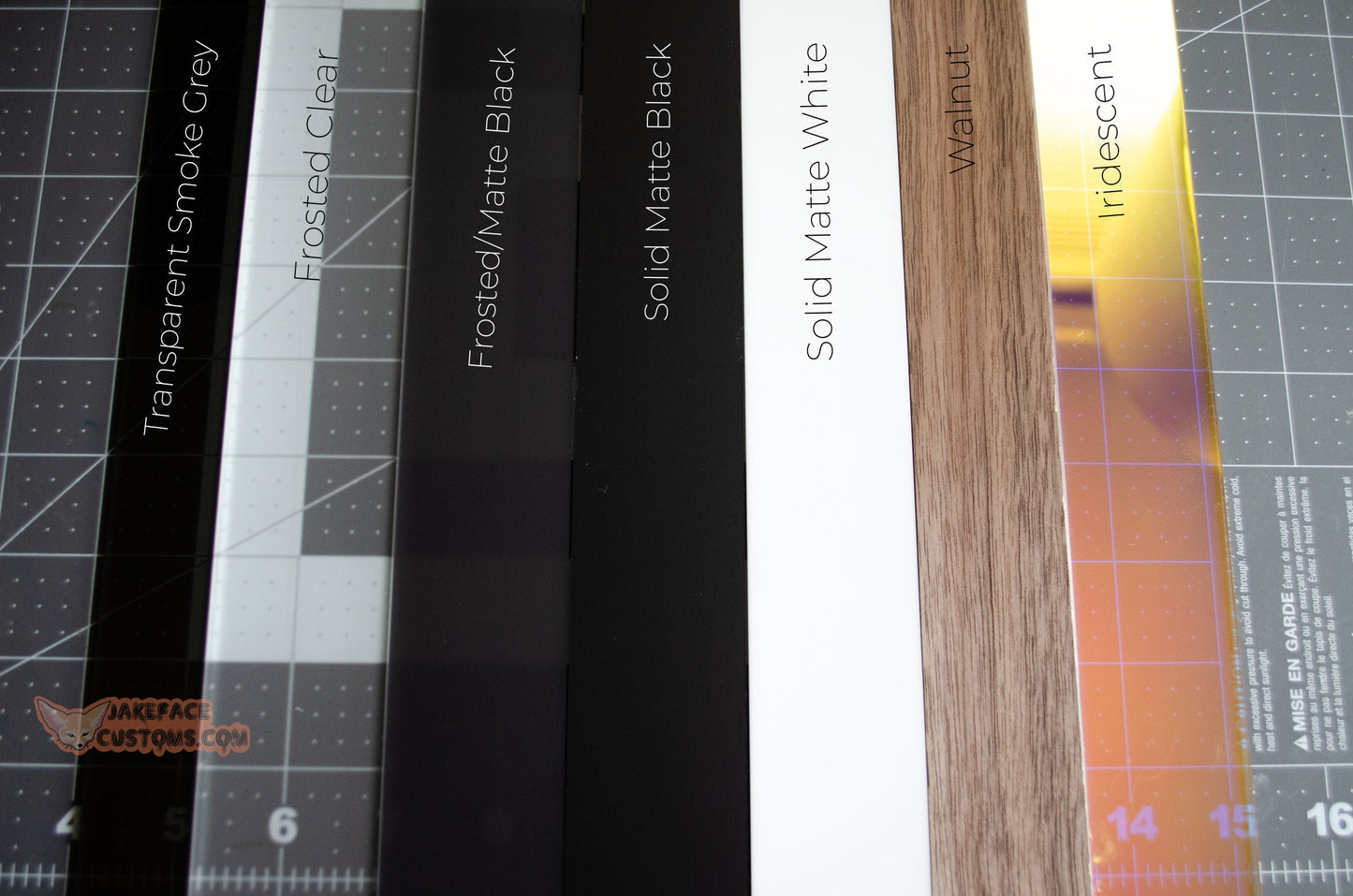

COLORS AVAILABLE:
FROSTED CLEAR:
Semi transparent clear with a frosted matte finish.
Transparent smoke grey:
#2064 transparent smoke acrylic. Similar to the same color or shade of the original glass.
Solid Matte Black:
Solid Matte Black acrylic
Solid Matte white:
Solid Matte White Acrylic
Walnut:
Walnut Plywood, clear coat
*All panels are shipped with the paper still attached to prevent scratches during shipping.
*This listing is for a panel only, case is not included
*This listing is for the new H5 released in 2022, not compatible with the H510 series.
Materials: Acrylic,magnets
Collapsible content
Installation
H510 Side Panel
If your new panel isn't fitting easily or you have a newer
model, check the front left corner of the case near the
bottom. There may be a metal tab blocking installation.
Simply bend down that tab in order to have an even fit.
H510 Front Panel
Remove both side panels. On the upper part of the case,
there is a little screw on either side that must be removed
for the original panel to pop off.
If the replacement panel is not fitting easily, especially if
you have a newer model: check the front of the case near
the left side for a small plastic wedge piece. This wedge
serves no purpose and must be removed for the front
panel to fit as intended.
H1 Front Panel
Before installation, remove the six rubber pads on the
front of the case (beneath the factory panel.)
Optional Fan Filters
If you purchased fan filters, these can be installed on the
front or back of your fans using the existing screws
already holding your fan in place.
A4H2O, Meshilicious, Q58, Ncase M1 and any other panel
with pins/pegs:
CAREFULLY and GENTLY install and remove!
Install: line up the pins and they should easily pop into
place (Don't smash!)
Remove: Remove carefully, one pin at a time while
keeping the panel close to the case. Do NOT yank or rip
the panel off from an angle or one side!
TIPS
- Installs like the stock panel!
- No modding required!
SHIPPING
- All international orders include Insurance
- International customers: Tax, duties/VAT may be collected at time of delivery.
